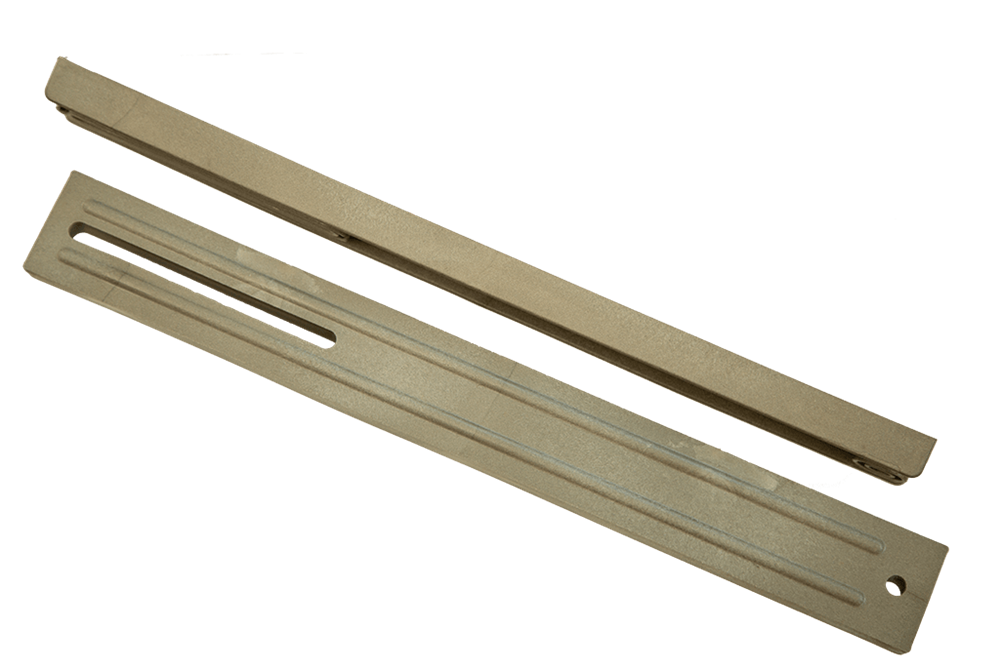

HADT8DAI is a Daikin deepening rail that makes room for Pancake trays between the condensate outlet of the outdoor unit.
It is used when the trough cannot fit between the outer part's fixings or the rubber dampers.
The rail is mounted under the outer part's fixings with screws (M10x40), nut, washers included in the package
It fits outdoor parts where the outdoor part's fixings cc are min 270 and max 390mm and a total load of max 180 kg.
HADT8DAI is recommended when installing outdoor units with free-hanging condensers, such as Daikin Altherma.
Technical information
- Length: 380mm
- Width: 40 mm
- Material: Composite material, dark grey, thickness 21mm
- Load per plate: max 90kg
- Fasteners: Screw M10x40, nut, washer
