OBS! When ordering a complete package, mark 3 in quantity.
Applications

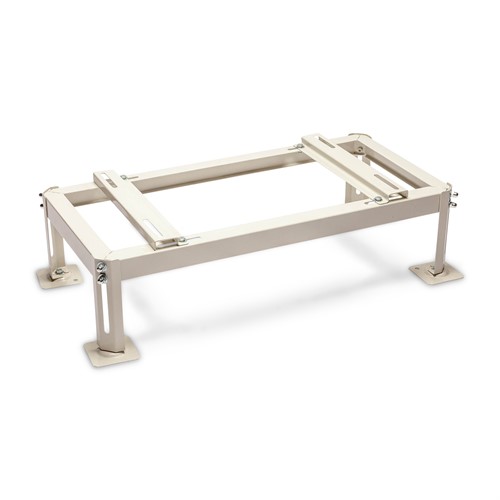

QsanTec GB-47 is a low and adjustable ground stand for outdoor units of heat pumps and air conditioning systems. The low-profile design is suitable for installations where the outdoor unit needs to be positioned relatively close to the ground.
The stand can be adjusted to suit different outdoor units and mounting dimensions, providing a stable installation on a suitable load-bearing surface.
Features & functions
- Low-profile design for installations where limited height is required.
- Adjustable construction to suit different outdoor units and mounting dimensions.
- Suitable for outdoor units of heat pumps and air conditioning systems.
- Adjustable legs facilitate adaptation to the installation site.
- Foot plates allow secure anchoring to the surface.
- Can be combined with vibration dampers.
- Electro-galvanized and powder-coated steel construction for outdoor installation.
Technical data
- Model: GB-47
- Brand: QsanTec
- Colour: RAL 9002
- Width: 850 mm
- Depth: 380 mm
- Height: 150–200 mm
- Mounting hole spacing, width: 350–625 mm
- Mounting hole spacing, depth: 185–350 mm
- Material thickness: 2.0 mm
- Max. load: 100 kg
- Surface treatment: Electro-galvanized and powder-coated
Installation
Check the dimensions, weight and mounting dimensions of the outdoor unit before installation. Adjust the stand to suit the outdoor unit and installation site.
Place the stand on a flat, stable and load-bearing surface. Check all fixings and the stability of the stand before mounting the outdoor unit.
